Holley: User Interfase Unit (UIU)

The UIU is the user prepayment user interfase, and provides a LCD to view information, and keypad to enter or request information, LED and buzzer alarm indication.

The numeric keypad has 12 keys:

Pairing UIU with the MCU (meter)

• Insert 4 AAA 1.5V batteries into the battery compartment at the rear of the UIU to ensure operation while the load is disconnected.
• If the display is off, depress any button to wake the UIU display
• Key in 337597072666 on the UIU and press ↳ (accept button ) to reset the pairing. The SUCCEED message will apear on the LCD display.
• Key in 11 digit meter number and press the ↳ (accept button ). The UIU will send the pairing command. If UIU and meter pairs successfully, UIU-good will be displayed, else Failed will be displayed.

Please Note:

• The UIU will exit the pairing process automatically if the meter number is not entered within 30min after pairing is reset.
• The UIU will exit the pairing process immediately after entering the meter number, irrespective of successful pairing or not.
• During the pairing process, short codes, recharge tokens or test tokens cannot be used.
• The pairing process will be exited in the event of a power failure

LCD Functionality:

Segment/symbol on LCD	Description
	Main display for energy, tokens and instantaneous values
	OBIS code
	Remaining credit data indicator
	UIU battery under voltage indicator
	kWh, V, A, KW Composite unit
	Tamper event alarm indicator
	Relay open / closed indicator
	Communication symbol, flashes when data exchanges underway
	Reverse current indicator
	Voltage detection indicator

LED Functionality:

Recharging the meter

• After purchasing credit, the user will receive a 20 digit STS TOKEN
• The STS TOKEN is entered into the meter using the UIU keypad
• Entering the token, 10 seconds between inputting of consecutive digits is allowed. Exceeding this will result in the user having to restart the inputting process.
• The back one space clear button allows errors to be corrected.
• Once all digits have correctly being keyed in, the accept button transmits the token to the MCU meter
• The meter configuration software can also be used to enter the token into the meter

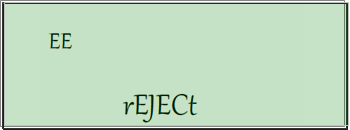

On entry of the token, one of the following responses are received:

Display	Description
	Recharge successfully Recharge credit is 132.50kWh
	Recharge unsuccessful Entered TOKEN has previously being entered
	Recharge unsuccessful Entered TOKEN code is correct but this recharge credit plus remaining credit exceeds maximum credit threshold
	Recharge unsuccessful Entered TOKEN older than the oldest TOKEN in the meter log (Overdue TOKEN)
	Recharge unsuccessful Entered TOKEN incorrectly entered

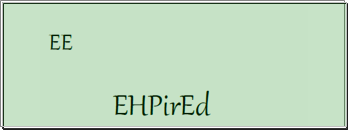

	Recharge unsuccessful The security key of the Entered TOKEN has expired

Measurement and Billing:

• Active energy (import and export).
• Remaining credit.
• Instantaneous Measurement (V, I, kW, f, power factor).

Displays:

• Metering Unit:
• - LED indicators provide visual indication for active power consumption rate, credit status, load switch status, alarms, mains power and "communication to CIU" status.
• Customer Interface Unit (CIU):
• - Large LCD with language independent icons.
• - Supports 3 display modes: scrolling display, manual display and power-off display.
• - Display contents are configurable.
• - LED indicators provide visual indication for credit status and alarm buzzer.

Standard

• IEC62055-31, IEC62052-11, IEC62053-21, IEC 62056-21, IEC 62056-61, IEC62055-41, IEC62055-51, IEC62055-52.
• STS 101-1, STS 201-1.
• Eskom standard: 240-76625601.

User Interface

• 12 digit keypad with audio feedback.
• Braille tactile on center "5" key to assist the visually impaired.

Display

• Multi-function LCD with backlighting.

Installation

• Wall mounting.

Power

• 230V 50Hz AC power (Default).
• Battery: 4xAAA batteries (to allow recharge when credit is depleted).

Ingress Protection

• IEC 60529 = IP 52.

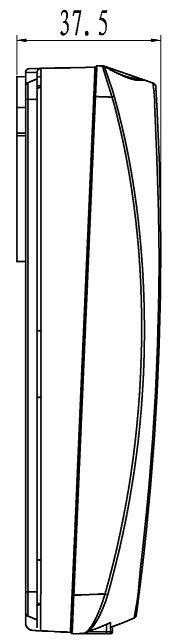

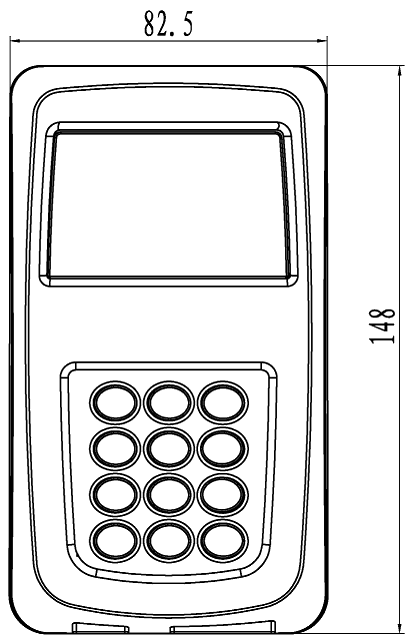

Dimensions (h x w x d)

• 148mm x 82.5mm x 37.5mm.

Mass

• 0.5 kg.

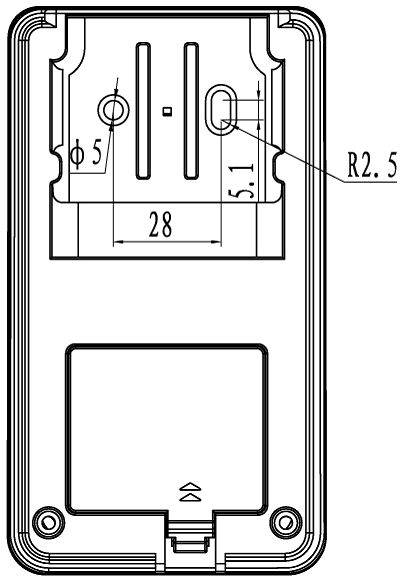

Overall Dimension
