Actom: Single-Phase Din Rail Pre-payment Meter

Equipped with proven keypad technology, Actom prepaid keypad meter contains all critical metering, token decryption, relay disconnection and reverse energy detection functionality. Together with the modern look and feel, it can be used in a wide range of applications for all consumer types.

Installations and Operation

The MCU part should be installed outdoor where is dry and ventilated. We suggest to install it in the meter box which can be protected from ruin. The MCU part is Din rail mounted, the CIU part is installed indoor. Just plug it into any power socket.

LCD Display

The scroll display table is configurable via PC software, includes: date, time, balance credit, total energy consumption, active power, SGC No.meter No., instantaneous voltage, instantaneous current, upper limit of active power and tariff index.

Static Display

When meter is disconnected from main line, static display is available to indicate the balance. Note: the default static display time is 3 minutes and this time is configurable via PC software.

Energy Measurement

HXE12 Single phase keypad meter can measure energy in security mode, which means it records reverse energy as forward one, and adds this value to total energy consumption. The registration range is 000000.00 – 999999.99 kWh. The meter can also measure instantaneous power, voltage and current.

Meter Communication

HXE12 Single Phase keypad meter is equipped with optical communication port which complies with IEC62056-21 standard. It is available to read and configure the meter via PC software or HHU. Meter parameters are programmable through Hexing PC software.

Through Hexing PC software, user can read and write as follows:

• Total credit
• Voltage and current
• Balance credit
• Meter number

Through Hexing PC software user can program as follows:

• Meter number
• SGC code
• Key modification waiting time
• Threshold of alarm
• Emergency credit
• Maximum credit upper limit
• CIU number

LCD Functionality:

Segment / symbol on LCD	Description
	Main display for energy, tokens and instantaneous values
	OBIS code
	Remaining credit data indicator
	Low battery indication
	kWh, V, A, KW Composite unit
	Tamper event alarm indicator
	Relay open / closed indicator
	Communication symbol, flashes when data exchanges underway
	Reverse current indicator
	Voltage detection indicator
	Current date
	Current time
	Credit successful
	Credit failure

Communication between MCU & CIU:

PLC communication is applied between the MCU and CIU. The maximum communication distance between MCU and CIU is 150 meters.

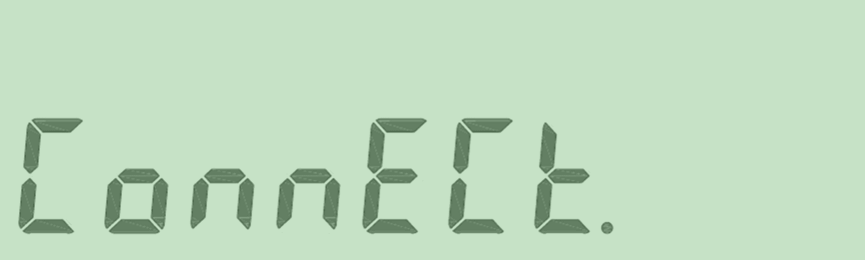

• Key in TOKEN code or query code, click enter key (❝ ❞). The information will be returned from meter if the communication is successful and LCD will display as follows.

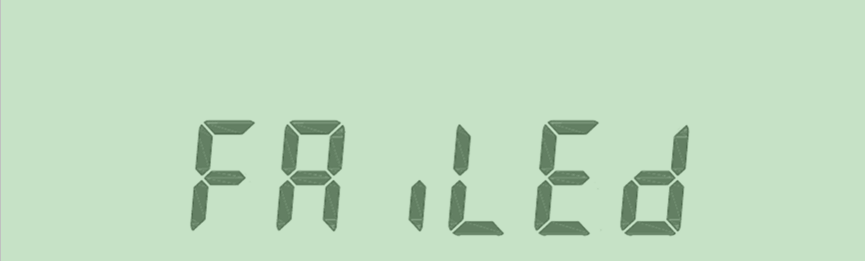

• The LCD will display as follows if fails in communication:



• When power-on, CIU will synchronous with the meter automatically to obtain meter information.
• After setting the alarm of remaining credit, every time meter registers 0.5 KWh, it will synchronous automatically with CIU to transfer information to CIU.
• Meter will synchronous automatically with CIU on the hour.
• When it is under relay connection or relay disconnection, meter will synchronous automatically with CIU to transfer information to CIU.

STS function: Credit

• After purchase credit at CDU or POS , user will get a 20-digits TOKEN, such as ❝6418-8786-2991-6780-9510 ❞. The TOKEN is encrypted by credit value, data and meter key according to STS standard.

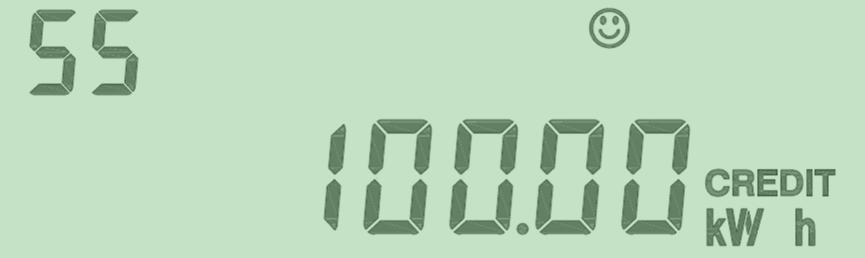

• Key in 20-digits token through keypad on the CIU. Credit successfully, the LCD will display the energy amount immediately and there is ❝SS❞ shown on the top left corner of LCD.

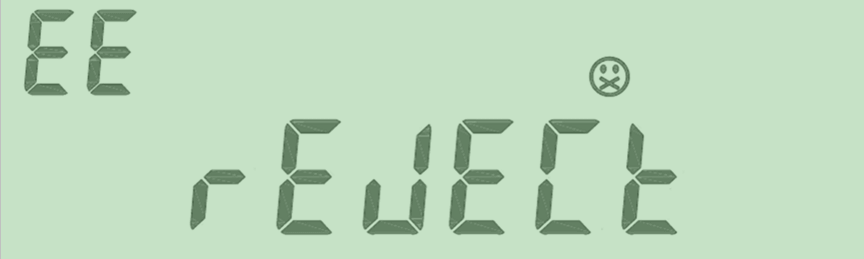

• Token Rejection: The 20-digits TOKEN is not entered correctly.

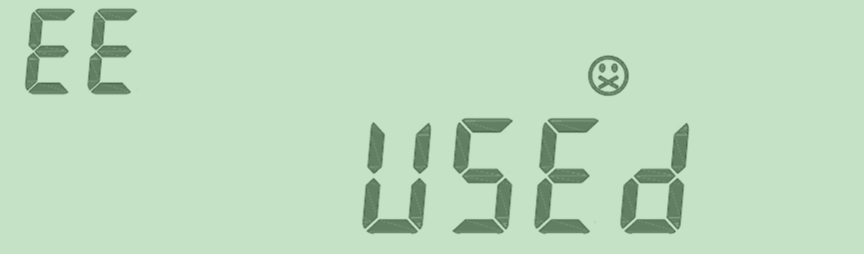

• The TOKEN has been used to credit meter before.

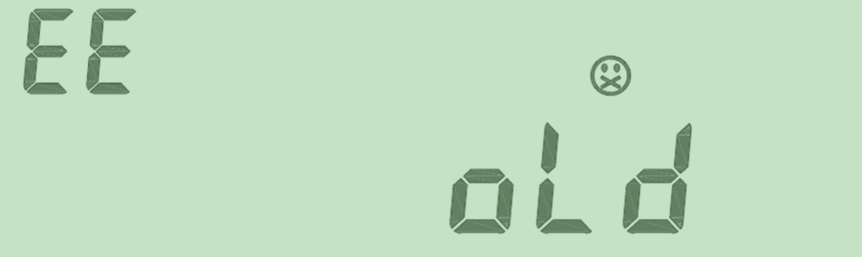

• The token is beyond the validity.


  Note: Note: CIU display cumulative kWh register CIU is able to recall the last five successful credit tokens entered.

Alarm Function

When the remaining credit is less than the third alarm thresholds, the buzzer will alarm.

Visible and audible low credit alarm is available to facilitate user to manage the balance and credit the meter in time.

• Green LED on – When credit is full or have enough credit
• Red LED on – When remaining credit is less than first alarm
• Red LED flash – When remaining credit is less than second alarm

Inquiry Button

Short code	Function
801	Remaining Energy
803	Time
802	Date
804	Meter ID
812	Cancel audible alarm
814	Current month energy consumption
818	Last Credit TOKEN
821	Last month energy consumption
831	Last month credited energy
817	Last credit energy
815	Last credit date
813	Last day energy consumption
816	Last credit time
800	Total EC
805	SGC code

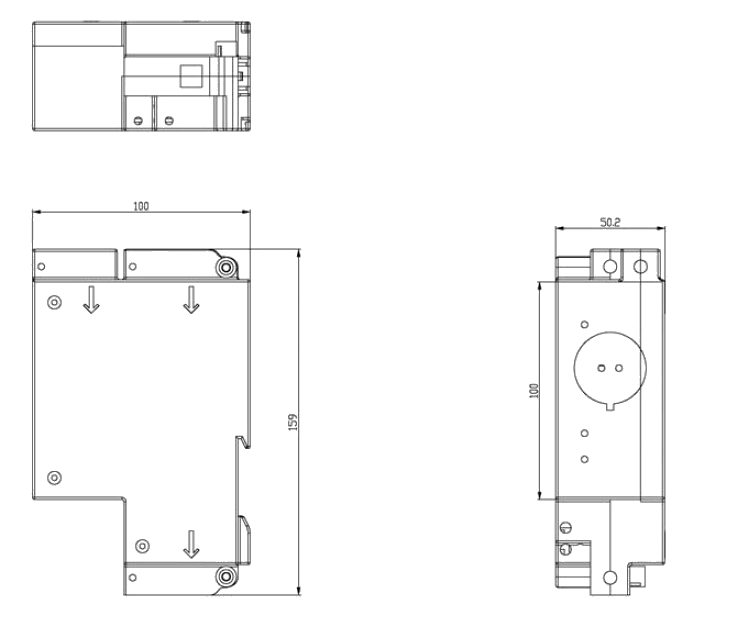

Overall Dimension

---

---

---

---

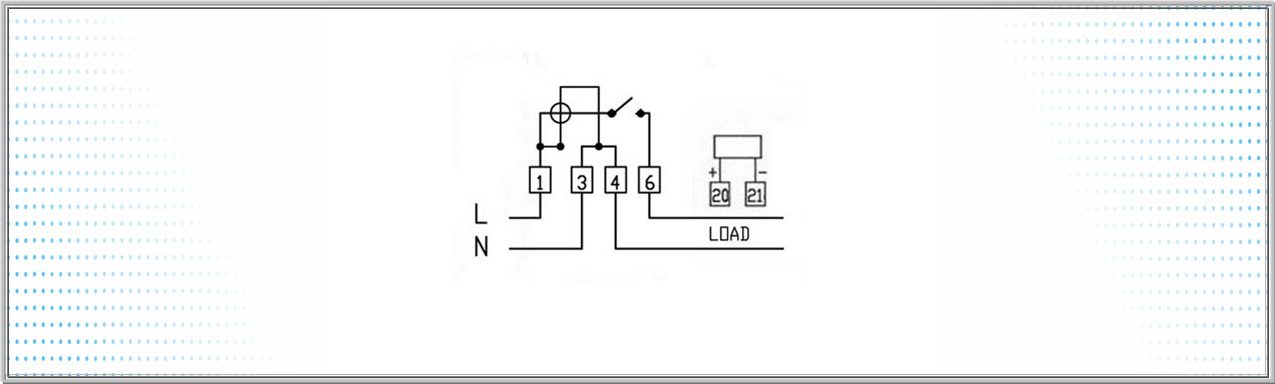

Wiring Diagram
